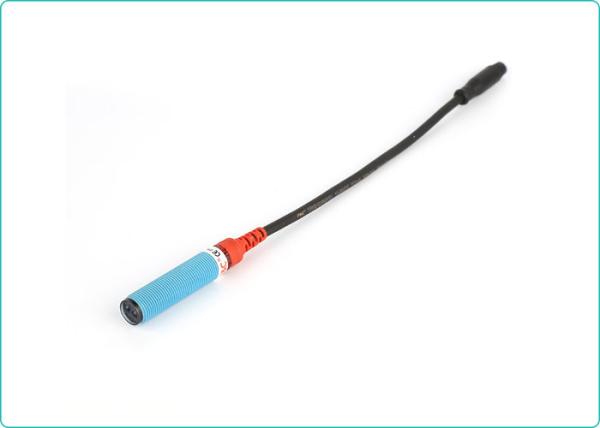

M12 Photoelectric Sensor 10cm Diffuse Reflection Sensor Used In industrial Automation

Brand Name : F&C

Model Number : DR12RI-S10P R2M

Certification : CE, RoHS

Place of Origin : China

MOQ : 1Pcs

Price : Negotiate

Payment Terms : Western Union, MoneyGram, Paypal

Supply Ability : 5000pcs per month

Delivery Time : 10days after deposit

Packaging Details : 1Pcs in a small White box

Light Source : 850nm Infrared modulated light

Detection Distance : 10cm

Operating Voltage : 12-24 VDC

Relfective Type : Diffuse reflection

Response Time : <0.3ms

Operating Temperature : -10~50℃(No icing)

Protection Circuit : polarity reverse and short-circuit protection

Warranty : 3 years

Contact Now

M12 Photoelectric Sensor 10cm Diffuse Reflection Sensor Used In industrial Automation

Feature:

*Diameter:12mm Round Shape
*DC 3-wire or 4-wire (12-24VDC+/-10%)
*PNP NO or NPN NO
*Detection distance:10cm(diffuse type)
*With 360 degree view Red indicator.
*Circuit Protection: polarity reverse
*Protection Grade: IP66

*3 years warranty
*Connection Method:Pre-wired 2m cable, pre-wired 150mm cable and M8 connector

Specifications

NPN NO	DR12RI-S10N R2M
PNP NO	DR12RI-S10P R2M
Detection Type	Diffuse
Standard Detection; Object;	10cm*10cm(White Paper)
Detection Distance	10cm
Light Source	850nm Infrared modulated light
Operating Voltage	12-24 VDC+/-10%
Response Time	0.3ms Max.
Current Consumption	15mA Max.
Load current	100mA Max at 24 VDC
Insulation Resistance	20M Ohm Min. at 500 VDC
Dielectric strength	60 seconds at 1000VAC 60HZ;
Protection Degree	IP66
Operating Temperature	-10℃-50℃;(No Icing)
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Material	ABS
Wire Method	dia4*2M/-3wires
Weight	107g
